Aluminum Veneer

Aluminum honeycomb composite panel

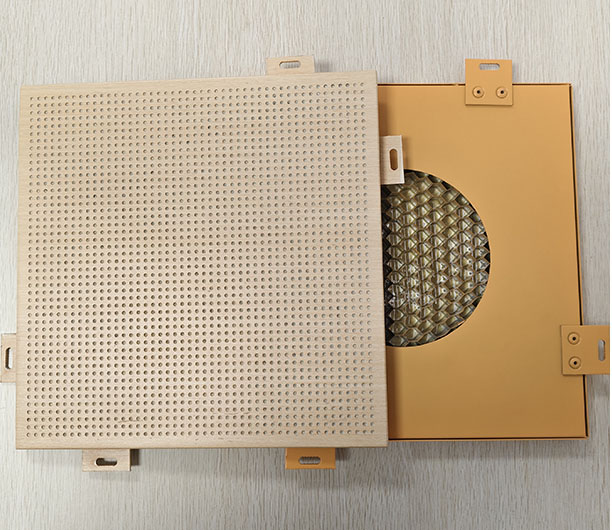

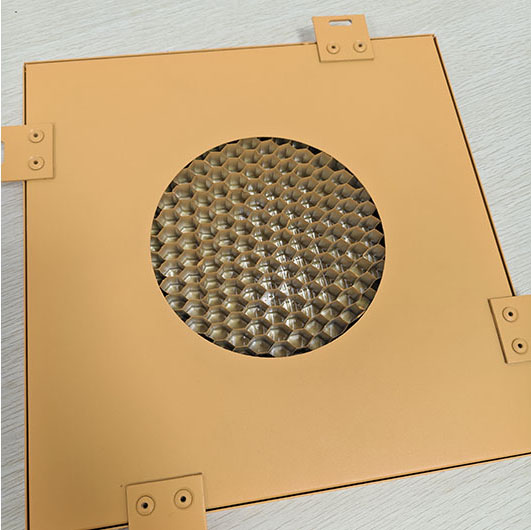

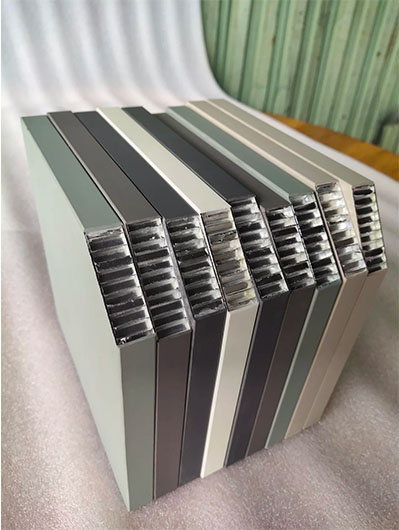

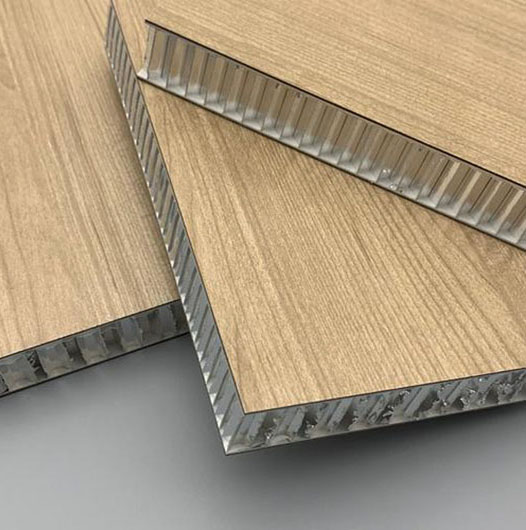

Aluminum honeycomb composite panels are made of high-strength aluminum alloy panels as the surface layer and lightweight honeycomb-like aluminum cores as the intermediate structural layer, through high-temperature composite technology The product combines ultra-lightweight and excellent mechanical properties, making it an ideal material for modern architectural interior and exterior decoration, as well as rail transit Its unique "sandwich " structural design significantly reduces self-weight while ensuring structural strength, in line with the development trend of green building and lightweight design

Product Series

Aluminum Veneer

0086-18765147518

E-mail

sales@yanglin-al.com

Core Features

1. Ultra-lightweight and high strength

The honeycomb core structure disperses stress through a hexagonal grid, enabling the panel to achieve a 3-5 times improvement in bending and impact resistance while weighing only 1/5 of traditional aluminum panels. It is particularly suitable for load-sensitive applications such as large-span and high-rise curtain walls.

2. Excellent physical properties

o Thermal insulation: The honeycomb core layer forms a closed air cavity with a low thermal conductivity coefficient, which can effectively block heat transfer and reduce building energy consumption.

o Sound insulation and noise reduction: The honeycomb structure significantly attenuates sound waves, achieving a sound insulation level of 25-35dB. It is suitable for noise-sensitive areas such as airports and high-speed rail stations.

Fireproof and flame retardant: Utilizing Class A fireproof aluminum core and flame retardant adhesive, achieving Class A fireproof performance standards.

3. Decorative and technological flexibility

The surface can achieve various decorative styles such as metallic texture, stone texture, and wood grain effect, and supports customized patterns and shapes. It can be processed into complex forms such as flat surfaces, curved surfaces, and irregular shapes, adapting to various architectural design needs.

4. Convenient installation

The factory prefabricates the products, eliminating the need for secondary cutting on site. They can be quickly installed through dry hanging, pasting, or mechanical fixing, significantly shortening the construction period.

5. Green and environmentally friendly

100% recyclable, with no harmful volatile substances during the production process, it aligns with the concept of sustainable development and has a high residual value upon recycling.

Application Fields

• Building facade: high-rise curtain wall, podium decoration, canopy, cornice, etc.

• Interior decoration: lobby background wall, elevator lobby, partitions, irregular ceiling, etc.

• Transportation: interior decoration of high-speed rail/subway carriages, ship bulkheads, airline luggage racks, etc.

• Special scenarios: clean operating room walls, laboratory countertops, billboard backboards, etc.

Specifications

Customization options

Item	Optional Range
Material	Panel: 1100/3003/5005 series aluminum alloy; Honeycomb core: 3003H18 aluminum foil (thickness: 0.03-0.08mm)
Thickness	Total thickness: 10mm-50mm (adjustable according to requirements, 15-25mm for conventional curtain walls)
Surface Treatment	Fluorocarbon spraying (PVDF), polyester spraying (PE), pre-roller coating, anodization, wood grain transfer, stone grain transfer, etc.
Color	Any color number can be customized (RAL and PANTONE color cards are available, and color matching with samples is supported)
Shape	Flat, single curvature arc surface, double curvature curved surface, special-shaped cutting (such as round, triangular, wavy, etc.)
Additional Services	Free samples, detailed design support, installation instruction manuals are provided, and packaging and logistics solutions can be customized according to project requirements

Summary of core advantages:
